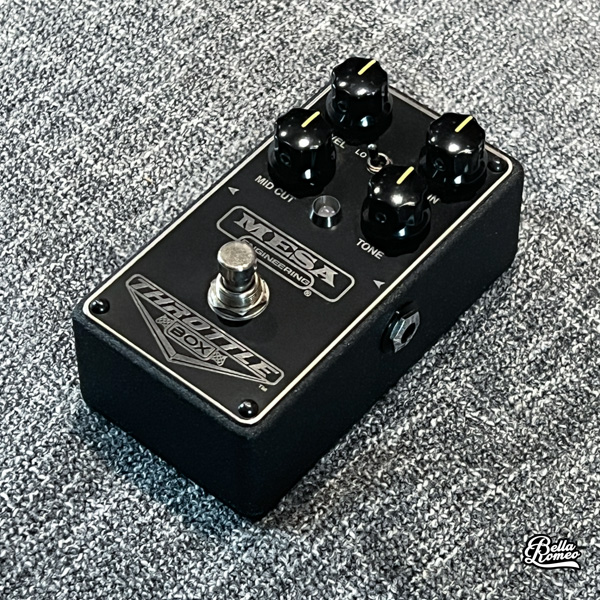

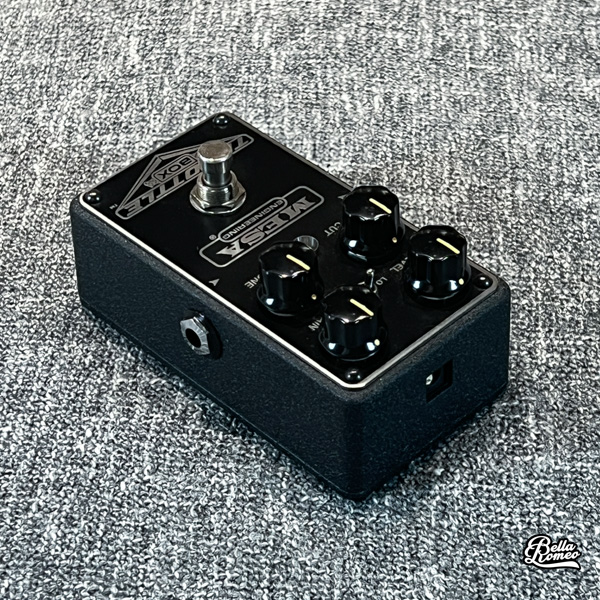

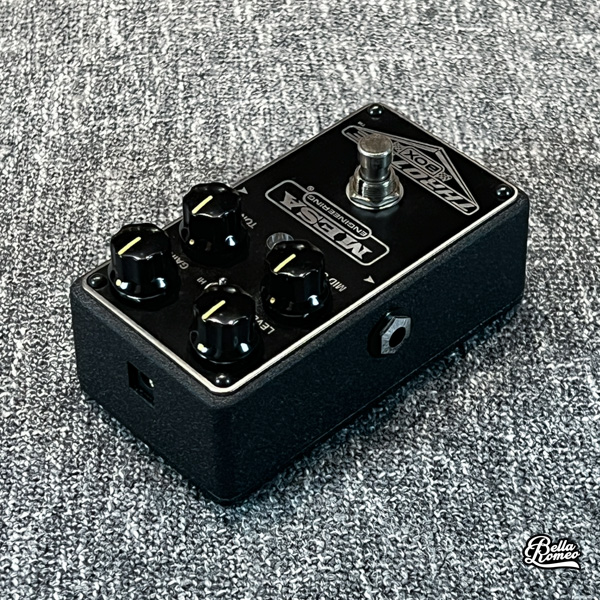

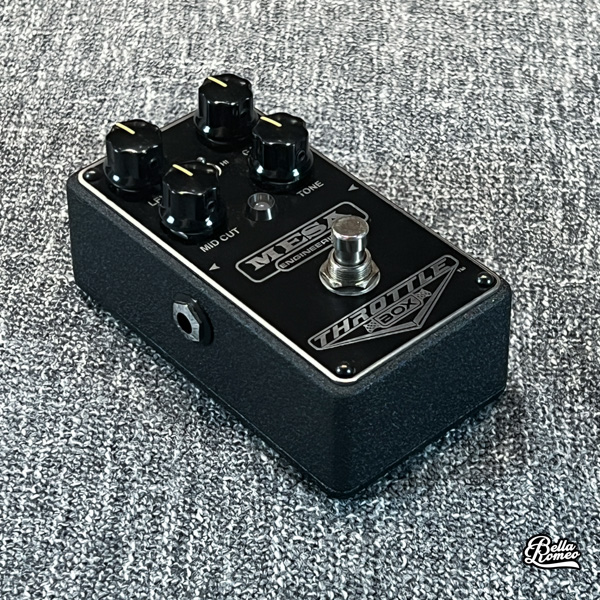

![Mesa/Boogie Throttle Box Overdrive Pedal [Used]](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-1.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 1 - Bella Romeo Music")
![Mesa/Boogie Throttle Box Overdrive Pedal [Used] - Image 2](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-3.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 2 - Bella Romeo Music")
![Mesa/Boogie Throttle Box Overdrive Pedal [Used] - Image 3](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-2.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 3 - Bella Romeo Music")
![Mesa/Boogie Throttle Box Overdrive Pedal [Used] - Image 4](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-4.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 4 - Bella Romeo Music")
![Mesa/Boogie Throttle Box Overdrive Pedal [Used] - Image 5](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-5.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 5 - Bella Romeo Music")
![Mesa/Boogie Throttle Box Overdrive Pedal [Used] - Image 6](https://i0.wp.com/bellaromeo.com/wp-content/uploads/2023/04/5647-Mesa_Boogie-Throttle-Box-Used-6.jpg?fit=600%2C600&ssl=1 "Mesa/Boogie Throttle Box Overdrive Pedal [Used] 6 - Bella Romeo Music")
Description
The Signature Warmth and Organic Sonic Quality Found in All Mesa/Boogie Amplifiers
The THROTTLE BOX™ Distortion serves up all genres of ROCK with cut and aggression, but retains the signature warmth and organic sonic quality found in all our amplifiers. While its main strengths lie in higher-gain sounds, it is quite versatile and it’s lower gain options shouldn’t be overlooked for classic rock or howling blues. The THROTTLE BOX also features a unique MID CUT that scoops out midrange to produce the signature Boogie® “V” EQ-curve that so many artists have employed in our amps to create the world’s heaviest guitar tones! PRODUCT FEATURES: – Designed and Handcrafted in Petaluma, California, USA – True Bypass On/Off Switching – Bypasses all circuitry when off to ensure no tonal loss – Gain Control allows you to dial in the perfect amount of classic to modern high-gain – Lo/High Gain Switch provides classic crunch to modern meltdown – Master Level Control provides a variable range of signal boost up to +20dB – Tone Control balances the amount of high frequencies – Mid-Cut Control provides powerful mid-scoop for modern high-gain styles – Internal EQ-Boost Switch provides added style/voicing option – On/Off Status LED – 9V Battery Powered or Externally Powered (optional) via External Power Jack Input – Input & Output Jacks (Nominal Input -20dB)
Controls
Gain Control allows you to dial in the perfect amount of classic to modern high-gain, Lo/High Gain Switch provides classic crunch to modern meltdown, Master Level Control provides a variable range of signal boost up to +20dB, Tone Control balances the amount of high frequencies, Mid-Cut Control provides powerful mid-scoop for modern high-gain styles, Internal EQ-Boost Switch provides added style/voicing option
Switches
True Bypass On/Off Switching – Bypasses all circuitry when off to ensure no tonal loss,
Led Indicators
On/Off Status LED

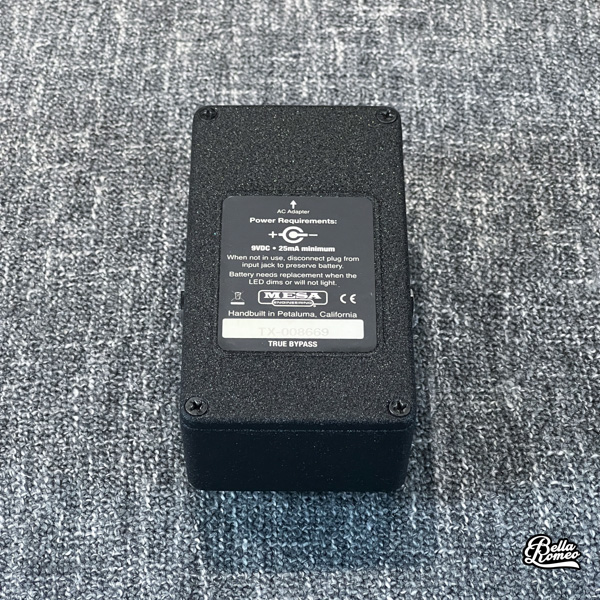

Power Requirements
9V Battery Powered or optional AC Powered via External Power Jack Input. WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
Current Draw
9VDC/15mA
Input Output Jacks
Input & Output Jacks (Nominal Input -20 db)
Input Impedance
1M Ohm (500k Ohm minimum)
Output Impedance
10k Ohm
Switching Type
True Bypass
Dimensions
4.77 x 2.87 x 2.30
Weight
0.865
The pedal is in Excellent condition, and fully operational. The original box is included.
