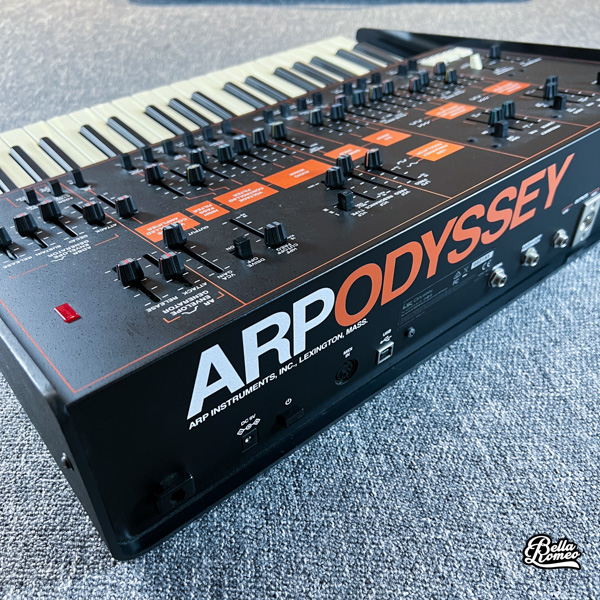

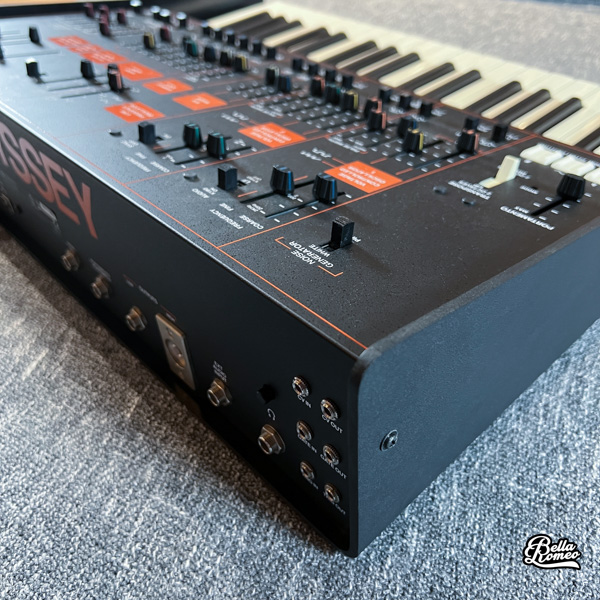

Korg ARP Odyssey Duophonic Synthesiser [Used]

Description

Keyboard

　

37-note (Slimkey, No velocity sensitivity, No aftertouch)

Maximum Polyphony

2 voices for duophonic; normally monophonic

Controllers

Transpose Positions

2 octaves down, normal, 2 octave up

Proportional Pitch Control

b (Pitch down) Pad: about -2 / 3 octave
– (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave

Noise Generator

Noise Spectrum Types (white and pink)

Portamento

Maximum Speed

about 0.01 msec./oct

Minimum Speed

about 1.5 sec./oct

VCO (Voltage Controlled Oscillator)

Waveforms

Sawtooth, Square, Pluse (Dynamic Pluse)

Frequency Range

VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz

Warm Up Drift

1/30 semitone from turn on max

Pulse Width

50 % – 5 %

Pulse Width Modulation

ADSR, +45 %
LFO, +15 %

Voltage Controlled Response

1 V/oct

Maximum Frequency Shifts

LFO sin wave, +1/2 oct.
LFO square wave, +1.5 oct.
ADSR, +9 oct.
S/H, +2 oct.

* VCO-1 is low note priority, VCO-2 is high note priority.

VCF (Voltage Controlled Filter)

Types

Low pass (I: 12 dB/oct., II III: 24 dB/oct.)

Frequency Range

16 Hz – 16 kHz

Maximum Usable Q

30

Resonance

1/2 – self oscillate

Voltage Controlled Response

C3 key (left edge): 0 V
C6 key (right edge) 3 V

VCA (Voltage Controlled Amplifier)

Dynamic Range

80 dB

Ring Modulator

Type

Digital

Input Signal

VCO-1, VCO-2 (square wave)

Sample & Hold

Command Sources

Keyboard or LFO trigger

Sampled Signals

VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise

ADSR Envelope Generator

Attack Time

5 msec. – 5 sec.

Decay Time

10 msec. – 8 sec.

Sustain Level

0 – 100 % or Peak

Release Time

15 msec. – 10 sec.

AR Envelope Generator

Attack Time

5 msec. – 5 sec.

Release Time

10 msec. – 8 sec.

Control Input Jacks

Pedal

6.3 mm monaural phone jack

Portamento Foot Switch

6.3 mm monaural phone jack

Audio Output Jacks
LOW

Connector

6.3 mm monaural phone jack

Maximum Output Level

-20 dBu@ 10 kΩ load

Output Impedance

10 kΩ

Audio Output Jacks
HIGH

Connector

XLR connector

Maximum Output Level

+4 dBu@ 1 kΩ load

Output Impedance

330 Ω

Headphones Jack

Connector

6.3 mm stereo phone jack

Maximum Output Level

50 mW + 50 mW@ 33 Ω load

Output Impedance

10 Ω

* Controllable by volume knob.

External Audio Input (Ext Audio Input) Jack

Connector

6.3 mm monaural phone jack

Maximum Input Level

-10 dBu

Input Impedance

22 kΩ

MIDI Connector

IN

USB Connector

Type B

CV IN/OUT Jacks

Keyboard CV (IN/OUT)

1 V/oct.

Connector

3.5 mm monaural phone jack

GATE IN/OUT Jacks

GATE IN

+3 V (minimum)

GATE OUT

+10 V, key down; 0 V all keys up

Connector

3.5 mm monaural phone jack

TRIG IN/OUT Jacks

TRIG IN

+3 V pulse min., 10 μsec. Duration minimum

TRIG OUT

+10 V pulse on key depression, 10 μsec. Duration

Connector

3.5 mm monaural phone jack

Power Supply

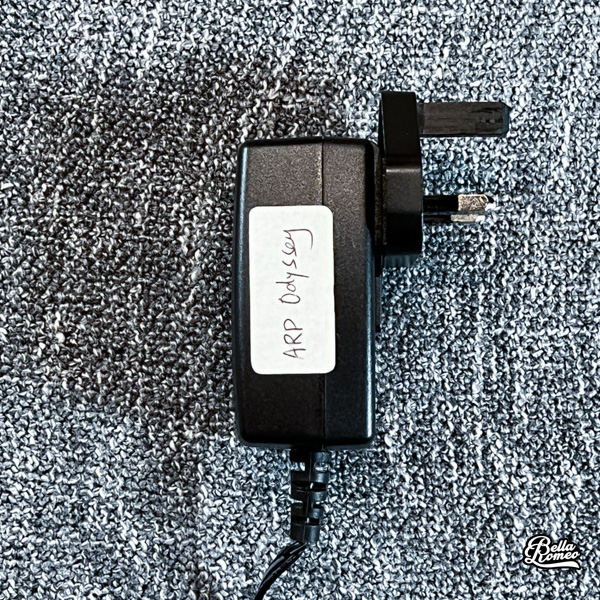

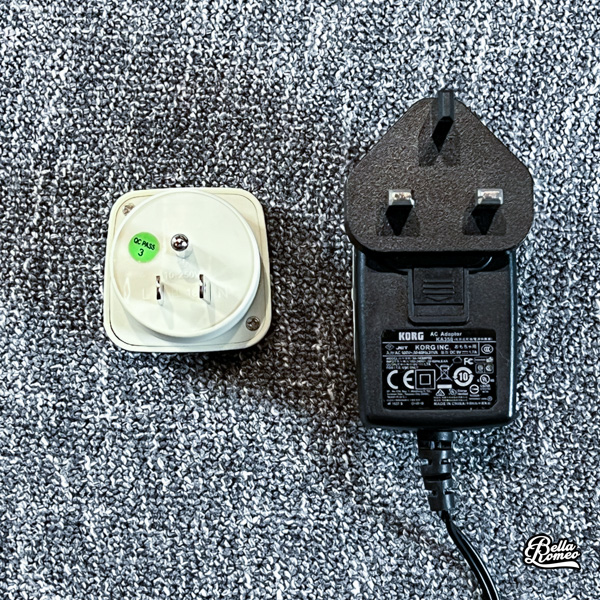

AC adapter jack (DC 9V)

Power Consumption

6.5 W

Dimensions (W x D x H)

502 x 380 x 120 mm / 19.76″ x 14.96″ x 4.72″

Weight

5 kg / 11.02 lbs

Included Items

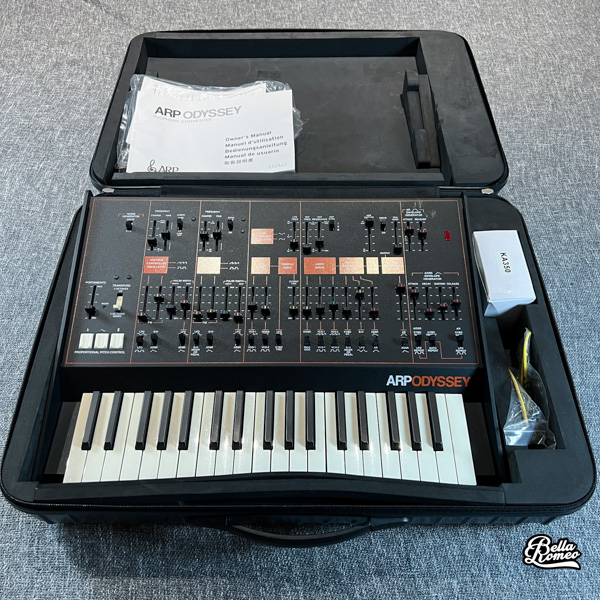

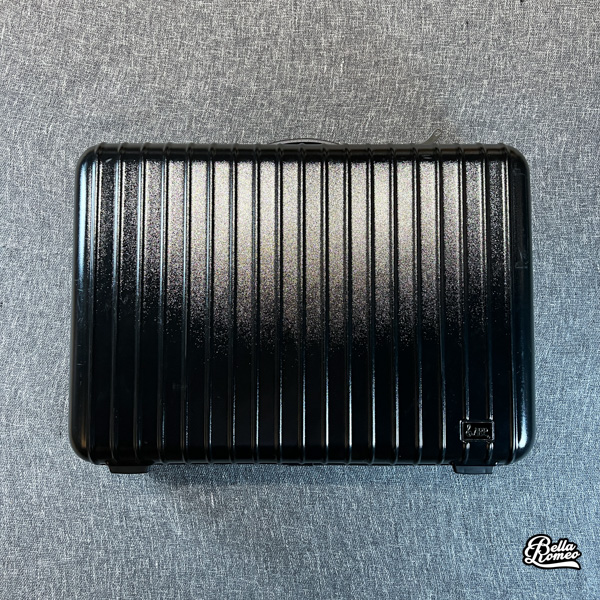

AC adapter, phone cable, mini-phone cable, owner’s manual, dedicated semi-hard case

Accessories

Expression/Volume Pedal

XVP-20

Volume Pedal

VP-10

Pedal Switch

PS-3

Pedal Switch

PS-1

Patch Cables

SQ-CABLE-6
